ITM Concrete Lifting Clutch Panel Lifter 5T

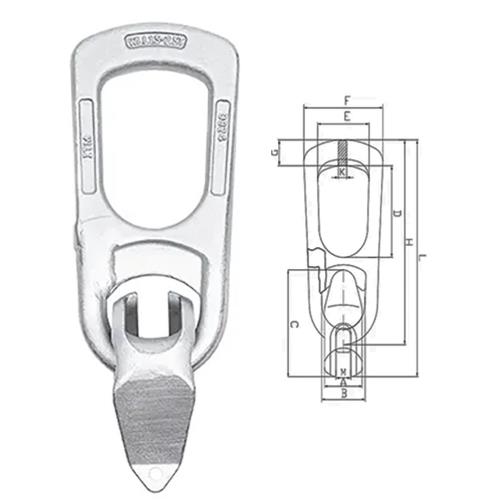

TM9814-00050 | ITM Concrete Lifting Clutch Panel Lifter 5T Features • Specifically designed for lifting precast concrete elements with an embedded pin • Easily engages under load, ensuring proper connection • Simple clutch release when lifting completed • Available in working load limits ranging from 1.3t to 20t • Tested and certified to AS 3850.1 Specifications • W.L.L. (t): 5 • B.L. (t): 20 • Dimension A (mm): 55 • Dimension B (mm): 70 • Dimension C (mm): 133 • Dimension D (mm): 88 • Dimension E (mm): 69 • Dimension F (mm): 110 • Dimension H (mm): 242 • Dimension M (mm): 22 • Dimension L (mm): 282 • Dimension G (mm): 35 • Dimension K (mm): 18 • Weight (kg): 3.24
