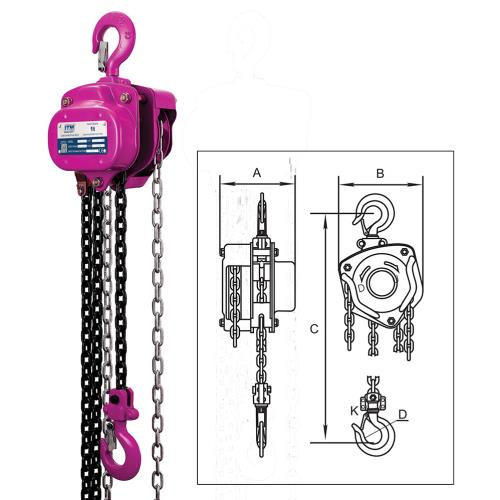

ITM Chain Block-Heavy Duty-1 Ton-3 Meter Lift
Product Code: TM9022-01003
$304.75 (Incl. GST)
Download PDF
TM9022-01003 | ITM Chain Block, Heavy Duty, 1 Ton, 3 Meter Lift
Features
• Load limited protection system
• Automatic double pawl braking system
• Hooks fitted with spring safety latches
• Tested & certified to AS 1418.2
Specifications
• 1000kg Rated capacity
• 3m & 6m Standard lift options
• 6mm Grade 80 chain
• Violet colour coded to W.L.L. for safety
• Standard Lift: 3m
• Weight: 10.5kg

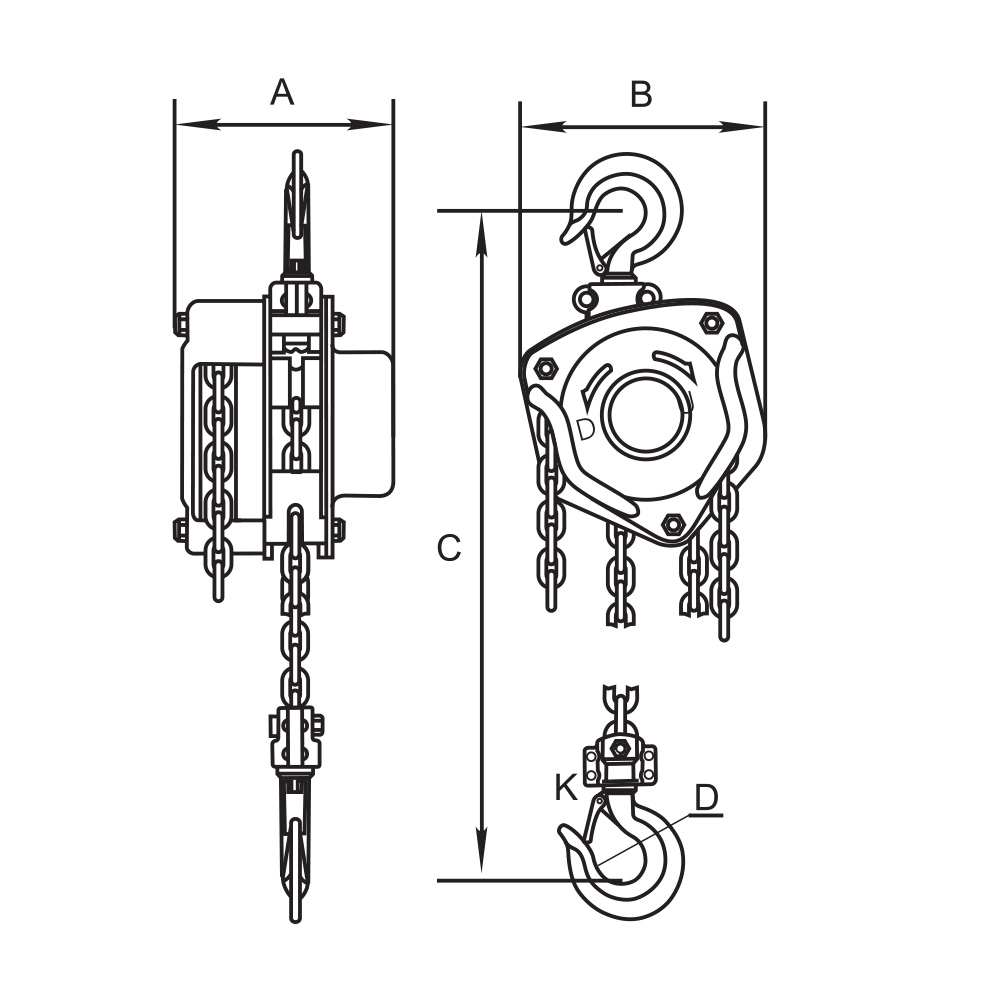

Dimensions (mm)
• A: 150
• B: 155
• C: 325
• D: 38
• K: 27
