300x180mm Capacity | Horizontal & Vertical Cut

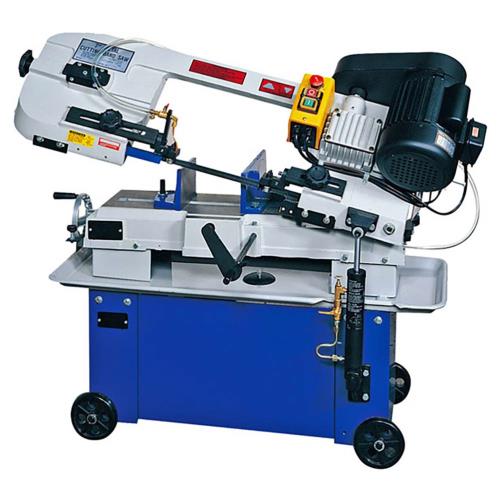

UE712A | ITM Bandsaw 4 Speed 240V 1.0HP Single Phase
Features
• Horizontal & vertical cutting bandsaw.
• Quick positioning swivel vice enables cuts from 0° to 45°.
• Fully adjustable hydraulic down feed with separate on/off valve & automatic shut-off at end of cut.
• Incorporated recirculating coolant system.
• Non-voltage return ON/OFF switch & emergency stop switch.
• 4 Blade speeds allows precise cutting of different materials.
• Brass chip brush to help extend blade life.
• Adjustable material stop for repetitive production.
• Fitted on base with wheels for easy manoeuvring.
• 12 months warranty.
• Comes complete with blade.
• Made in Taiwan.
Specifications
• Motor: 1.0HP Single Phase (240V)
• Blade Speed: 4 Speed 22 / 33 / 45 / 65mpm (meters per minute)
• Blade Size: 19mm x 0.9mm x 2360mm
• Bed Height: 572mm
• Weight: 130kg
Cutting Capacity
Cutting Angle Round Square Rectangle
• 90° 180mm 180mm 300 x 180mm
• 45° Right 110mm 110mm 120 x 115mm
