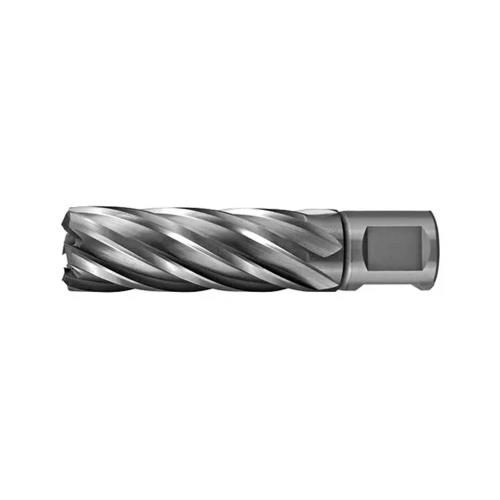

HM1/2X2 | Holemaker Silver Series Annular Cutters 1/2 x 2in
• M2AL HIGH SPEED STEEL MATERIAL.
• M2AL High Speed Steel is a high alloy material with a hardness of up to 67.5 HRC, designed for increased endurance of the cutting edge and tool life.
• STEP HARDENED PROCESS.
This state of the art manufacturing process produces cutters with extremely hard tooth tips for increased cutter performance, while maintaining a softer body which is less susceptible to breakage than standard high speed steel cutters.
• MULTI-CUT GEOMETRY.
Provides smooth and fast cutting, with decreased chatter. This also increases the cutters ability to remove swarf away from the cut, and helps to enhance centering.
• FULLY GROUND WITH INTERNAL RELIEF.
This feature allows Holemaker cutters to produce reamed quality, burr-free holes, and also helps to reduce torque and horsepower requirements.
• Pilot Pin To Suit 1"e; Cutters - SP16003
• Pilot Pin To Suit 2"e; Cutters - SP16004
Specifications
• Diameter: 1-1/2" (38.10mm)
• Depth of Cut: 2" (50mm)
• Pilot Pin Diameter: 6.34mm
• Shank Diameter: 3/4" (19.05mm)
• Pilot Pin To Suit - SP16004
