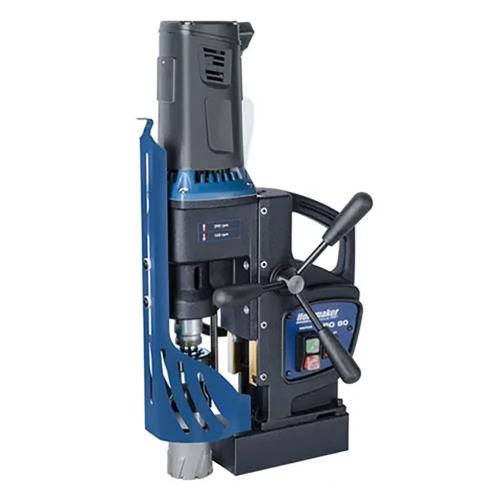

Holemaker PRO80 Magnetic Base Drill 240V 3MT

HMPRO80 | Holemaker PRO80 Magnetic Base Drill 240V 3MT Features The Holemaker PRO 80 is an extra heavy duty mid-sized machine capable of producing burr-free holes up to 80mm diameter by 110mm depth. The 1500w motor with 2-speed mechanical gearbox produces superb torque through gear reduction in low speeds. No. 3 Morse Taper spindle bore for use with taper shank drills, tapping head (M30 Capacity) and taper shank reamers. Supplied complete with side mounted coolant system and arbor for use with ¾" shank Holemaker cutters up to 75mm diameter and 75mm depth of cut. Optional arbor to take 1-1/4" shank cutters up to 80mm diameter and 110mm depth. • Lightweight for a large capacity machine, only 18kg • Rigid casting designed to withstand firm downward drilling force, prolonging the machine and tooling life • New generation Italian made motor and heavy-duty 2 speed gearbox • Semi-automatic gib adjustment enables simple, fast, correct, and repeatable slide backlash settings without any expert knowledge or experience • Magnetic Field Shape Control (MFSC) provides maximum holding power on thin materials • Magnetic Power Adhesion Control (MPAC) detects the adhesive force of the electromagnetic base and protects both the machine and the operator from working on too thin workpiece • 2 Years Warranty Specifications • Capacity (Diameter): 80mm • Capacity (Depth): 110mm • Capacity (Twist Drills): 25mm • Spindle Taper: MT3 • Motor Power: 1500 Watt 240V Motor • Input Power: 1600 Watt • Speed: 2 speed heavy-duty gearbox 160/390rpm • Weight: 18kg • Magnetic Dead Lift: 11,000 N on 25mm steel plate • Stroke: 190mm • Height (Min./Max.): 476mm/666mm
